Product Details
＋
The ideal video surveillance solution

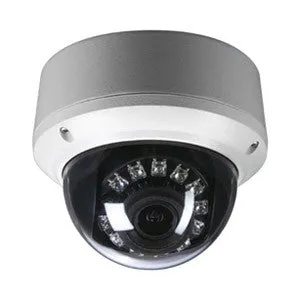

Protect your home, business, and more with the Linear Vandal Dome Day/Night Digital WDR Security Camera. With a resolution up to 700 TV lines, this compact vandal dome camera provides exceptional video quality that is ideal for any analog-based video surveillance solution. It offers advanced features such as the Effio-E enhanced chipset, digital Wide Dynamic Range (WDR), smart IR illumination, day/night IR cut filter, and digital noise reduction. And, to make installation a snap, the camera comes with both a variable-focus lens and 3-axis adjustment. The metal housing is vandal-resistant and has a robust IP66 rating, making this camera ideal for any outdoor video surveillance requirements, especially for exterior doors and perimeters.
Product Information
Protect your home, business, and more with the Linear Vandal Dome Day/Night Digital WDR Security Camera. With a resolution up to 700 TV lines, this compact vandal dome camera provides exceptional video quality that is ideal for any analog-based video surveillance solution. It offers advanced features such as the Effio-E enhanced chipset, digital Wide Dynamic Range (WDR), smart IR illumination, day/night IR cut filter, and digital noise reduction. And, to make installation a snap, the camera comes with both a variable-focus lens and 3-axis adjustment. The metal housing is vandal-resistant and has a robust IP66 rating, making this camera ideal for any outdoor video surveillance requirements, especially for exterior doors and perimeters.
Product Features
- Provides exceptional video quality that is ideal for any analog-based video surveillance solution thanks to a resolution up to 700 TV lines
- Offers advanced features that enhance the cameras video performance for both day and night operation
- Includes features such as the Effio-E enhanced chipset, digital Wide Dynamic Range (WDR), smart IR illumination, day/night IR cut filter, and digital noise reduction
- Camera comes with both a variable-focus lens and 3-axis adjustment
- Metal housing is vandal-resistant and has a robust IP66 rating
- Ideal camera choice that will satisfy any outdoor video surveillance requirements, especially for exterior doors and perimeters
- Designed as a "fit-and-forget" video surveillance solution, so once installed, you can count on quality performance video
Specifications
- Color: White
- Image Sensor: Effio-E Enhanced 700 TVL, ICX672/ICX673AK CXD4140 960H CCD
- Horizontal Resolution: >700 TVL (B/W) > 650 TVL (color)
- Video Format: NTSC, PAL
- Effective Pixels: NTSC: 976(H) x 494(V) PAL: 976(H) x 582(V)
- Noise Reduction: 2d (Y and C Levels 0~15)
- Wide Dynamic Range: D-WDR modes, with ATR-EX functions Clip and scale user settings
- Day/Night Function: Removable IR cut filter
- IR LED Support: Smart IR technology / Sony Smart IR optimizer
- IR Distance: 15 M
- Lens: 2.8-12 mm, vari-focal, board mount / M14
- Sync System: Internal / (Line lock with AC option)
- Min. Illumination: 0.01 Lux/F1.2 IRE 40
- S/N Ratio: >52 dB
- Video Out: BNC CVBS 1V p-p 75O / External 2nd Video RCA with control board
- Scanning System: 2:1 Interlace
- Electronic Shutter: NTSC: 1/60 to 1/100,000 sec
- Operating Temperature: -10C - 50C
- Storage Temperature: -20C - 60C
- White Balance: ATW/Push/User1/User2/Anti-CR/Push lock 1,800k ~ 10,500k
- Iris Control: Auto
- Backlight Compensation: BLC / HLC
- OSD Control/Functions: Multi-language OSD menu w-joystick control
- OSD Language: English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese
- Motion Detection: 4 User-defined zones
- Privacy Masking: 8 User-defined zones
- Display Mirror: Horizontal
- Slow Shutter (Sense Up): n/a Low light gain multiplier
- Input Power: 12VDC / 24VAC
- Dimensions: 5.11" x 4.4" (D x H, Approx)
- Weight: 1.86 lbs
- Warranty: 3 years and 3 months
- Housing: IP66 rated
